Gateway configuration

The Gateway configuration page allows you to add, view and manage Asset Gateways. Asset Gateways function like IoT Gateways, rather than as traditional network gateways. For a network scan on the Inbox page, an onboarded Asset Gateway is required.

The numbered areas in the screenshot correspond to the following interface sections:

1 Every row contains the information about one Asset Gateway.

2 Actions on the Gateway configuration page.

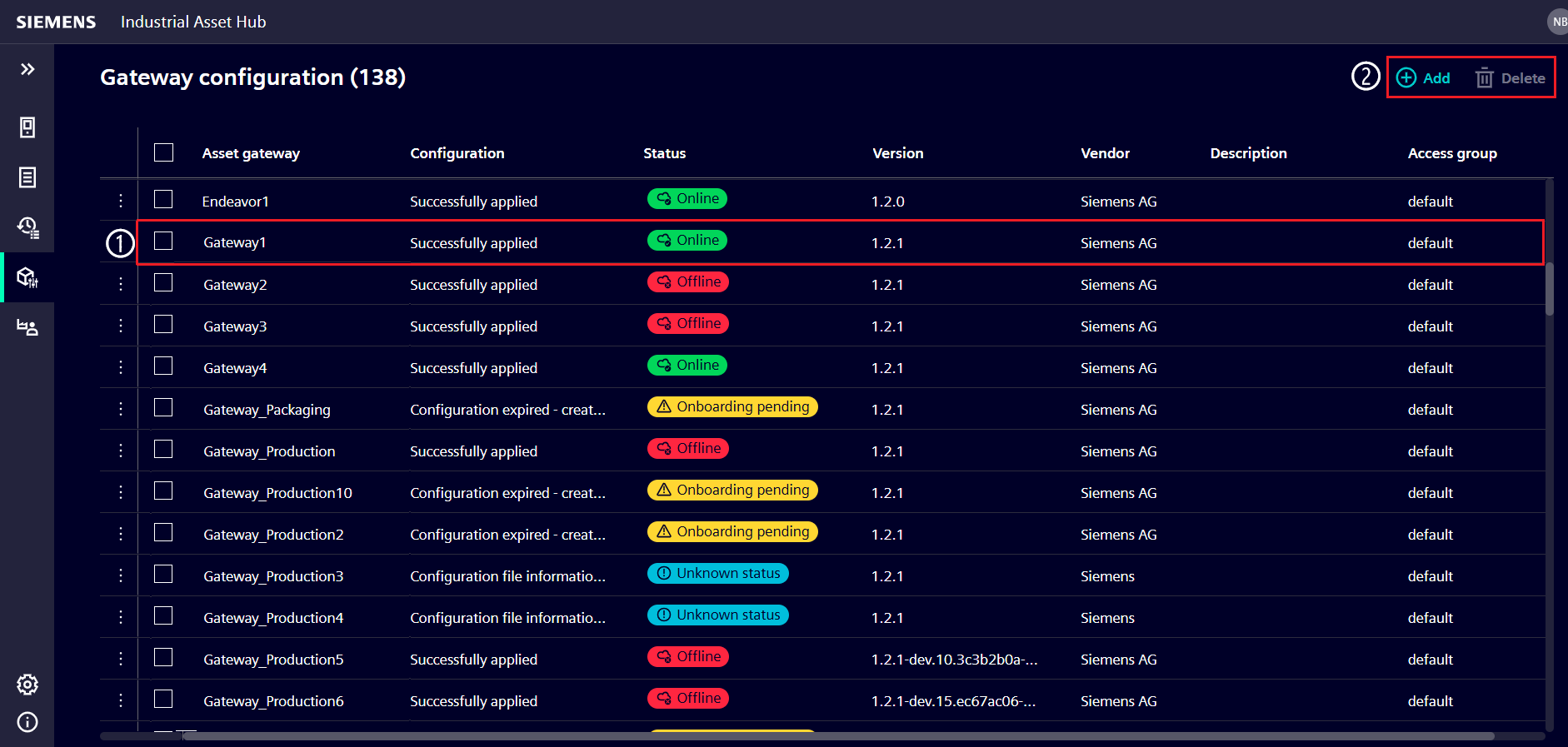

Figure: Gateway configuration page

Customize the Gateway configuration view

Rearrange columns

Columns can be easily rearranged in the list to the desired position via drag and drop.

Sort and filter the Gateway configuration list

Every column on the Gateway configuration page can be sorted. All columns can be filtered, except for the Status and Configuration columns.

Sort and filter a column

Sort a column by clicking on the column header. The column will be marked with an arrow. Click the arrow to toggle between descending or ascending order.

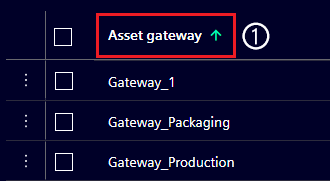

Figure: Sorted Asset gateway column
To filter a column, hover over the column header and click on to open the Filter dialog.
The drop-down menu on the filter dialog shows available filter options.

Asset Gateway status

An Asset Gateway can have different states and status pills. The possible status pills are described in the table below.

Status pill	Description	Action
	Asset Gateway reached and online.	Non required.
	Asset Gateway created but not onboarded. Configuration file valid.	Deploy Asset Gateway. For further information, refer to Administrators page.
	Asset Gateway configuration file older than 30 min and invalid.	Recreate the configuration file in the Asset gateway details and deploy Asset Gateway. For further information, refer to Administrators page.
	Asset Gateway configuration file information not available.	- When connection to the Onboarding service is lost, wait for the connection to be re-established. - When Asset Gateway is created directly in the Inventory API delete the gateway and create it again via the Onboarding service.
	Asset Gateway offline longer than 15 min.	If offline status is not intentional, check the logs of your IED and Asset Gateway.

Access group column

Access groups help structure assets or restrict access to specific assets for certain users.

In the List settings of the Asset list, enable the Access group column to see the Access group entries for each asset.

If the Access group feature is not used, leave the Access group column entries untouched. All Asset Gateways are automatically in the default Access group.

If Access groups are used, assigning users to Access groups can only be done by users with the user_admin role. The Access group of an Asset Gateway can be changed by renaming it.

Note

When a new access group is created, all users in the default Access group with the user_admin role are automatically assigned to it.

For further information, please refer to the Configure Access Management page.

Rename an Access group entry

Click on the desired Access group entry.
Enter the Access group name and press Enter.

Asset gateway details

Detailed information about any Asset Gateway can be found in the Asset gateway details.

Click on the three dots on the far left of a row, then click View details.
Clicking the three dots of a different asset opens its Asset details and closes the previous one in the process.

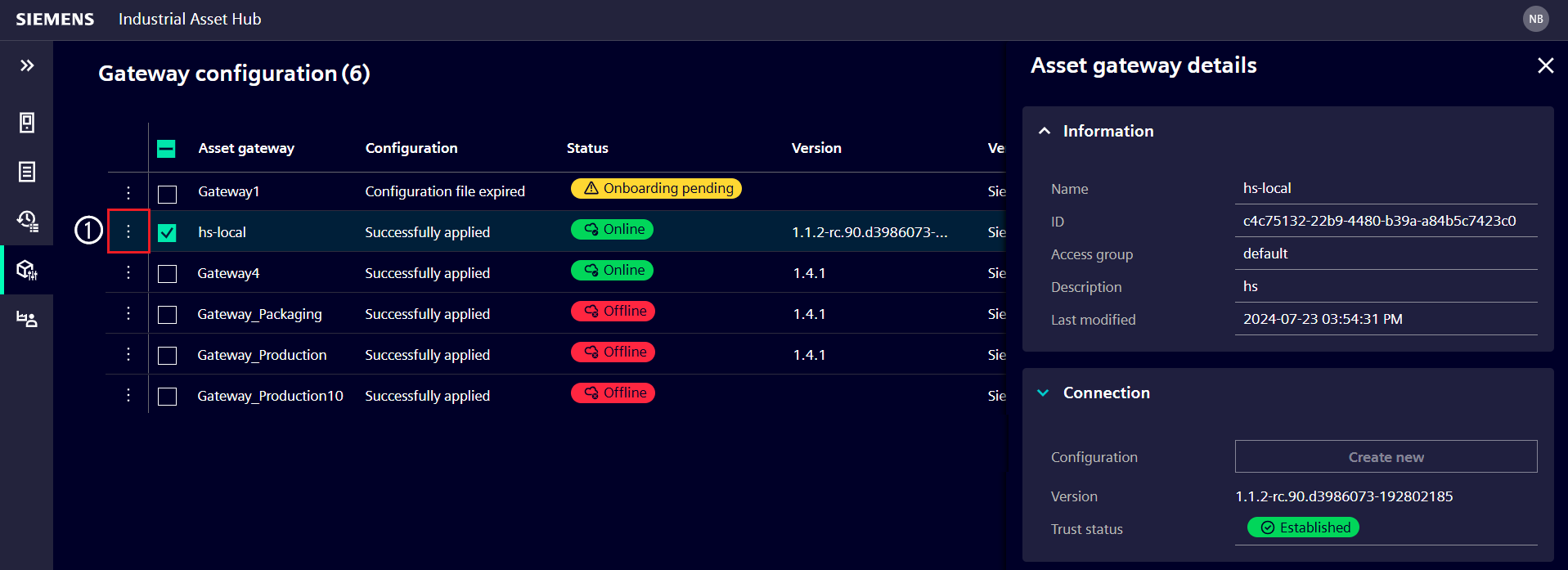

Figure: Asset gateway details of the selected Asset Gateway

Trust status

The Trust status of an Asset Gateway is shown in the Asset gateway details. The Trust status indicates whether the Asset Gateway is onboarded and trusted by the IAH app.

Trust status pill	Description	Action
	Asset Gateway successfully onboarded and trusted by IAH.	Non required.
	Asset Gateway not trusted by IAH. Asset Gateway created but not onboarded. Configuration file valid.	Deploy Asset Gateway. For further information, refer to Administrators page.
	Asset Gateway not trusted by IAH. Asset Gateway not onboarded and configuration file older than 30 min and invalid.	Recreate the configuration file in the Asset gateway details and deploy Asset Gateway. For further information, refer to Administrators page.

Asset Gateway Lifecycle

In additional to the table above, the following overview outlines the Asset Gateway lifecycle.

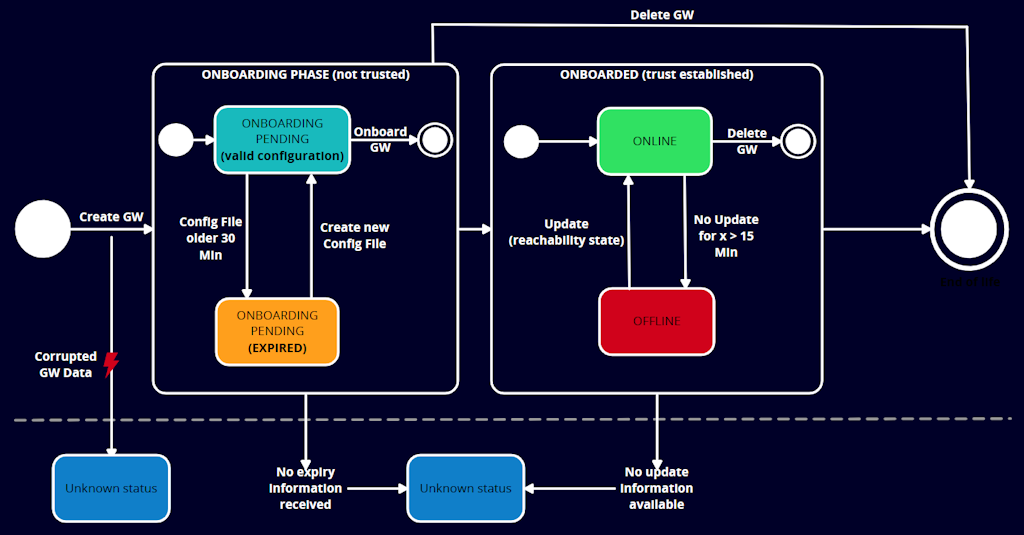

Figure: Asset Gateway lifecycle

Unknown status is shown for the following edge cases:

1) Outdated Asset Gateway version which has no heartbeat feature and can't set the reachability state.

2) The onboarding service has not responded with the required expiry information, thus it is not clear if the configuration file is still valid.

3) An asset date has been created with type Asset Gateway, but it lacks required information (corrupted data set).

Actions on the Gateway configuration page

Actions can be started for each Asset Gateway by selection. The available actions are Add an Asset Gateway and Delete.

Action 'Add' an Asset Gateway

Adding an Asset Gateway and downloading a gateway-config file in the IAH app is the first part of the Asset Gateway deployment. The second part is the deployment of the Asset Gateway with the gateway-config file in IEM. The result of the Asset Gateway deployment is an onboarded Asset Gateway.

Creating an Asset Gateway is restricted to users with create_gateway permission, usually the Administrator of the default access group.

For further information, refer to the Setup Industrial Asset Hub page chapter 'Deploying the Asset Gateway'.

Action 'Delete'

Asset Gateway(s) can be removed after selection using the Delete button.

Deleting an Asset Gateway will:

Remove its relation to assets discovered by the Asset Gateway (assets remain in the Asset list)
Invalidate its certificate
Close all active remote connections
Cancel all pending jobs

Gateway configuration file

The Gateway configuration file (gateway-config.json) is a file that contains the necessary information for the Asset Gateway to connect with the IAH app. It is generated in the IAH app with and needs to be applied in the Asset Gateway via the IEM or added before startup for docker deployments. The generated file contains a registration token that is valid for 30 minutes. If the file is not applied within this time frame, a new file needs to be generated and deployed. But it can also be used to update the configuration of an already onboarded Asset Gateway, in case the onboarding service URL or the Asset Gateway ID has changed. In this case, there is no need for the registration token property.

Here is an overview of all properties and when they are needed:

Obligational properties

gatewayId, a unique identifier for the Asset Gateway entity in the IAH app
xfUrl, the link to the IAH backend

For onboarding only

registrationToken, contains a temporary token used to validate the trust establishment request of the Asset Gateway

Optional properties

gatewayName, has no function but is added to support the user to apply it to the intended Asset Gateway host

Proxy configuration

httpProxy
httpsProxy
noProxy

Application configuration

appConfig, contains configuration parameters for the Asset Gateway application

The generated file is created with the described optional properties in their default state. This means AppConfig with the default settings for the Default IP Scanner and proxy settings without values. Removing them will not change the onboarding result, but they are shown to show what can be configured to fit the local requirements.

Recommendation

We recommended to keep the configuration files for your Asset Gateways in case you need to change configurations later. Retrieving the configuration file later from the respective Asset Gateway via IEM is possible too, but this will be more effort and time intense than keeping the original file in a location of your choice. For further information refer to the Asset Gateway issues

Examples

Example 1: Gateway configuration file with only obligational properties

{
  "gatewayId": "<gateway_id>",
  "xfUrl": "https://gateway.<region>.sws.siemens.com/api/<app_name>-<app_tenant_name>/<app_version>"
}

Example 2: Gateway configuration file with all properties

{
  "gatewayId": "<gateway_id>",
  "xfUrl": "https://gateway.<region>.sws.siemens.com/api/<app_name>-<app_tenant_name>/<app_version>",
  "registrationToken": "<jwt_token>",
  "gatewayName": "My Asset Gateway",
  "httpProxy": "http://proxy.example.com:8080",
  "httpsProxy": "https://proxy.example.com:8443",
  "noProxy": "*.example.com,localhost",
  "appConfig": {
    "myAppExample": {
      "setting1": "value1",
      "setting2": "value2"
    },
    "anotherApp": {
      "settingA": "valueA"
    }
  }
}

Processing app configurations

As it is described in example 2, the content of appConfig can be a list of several app specific configurations. When the example is applied and the Asset Gateway app is restarted, the configuration is processed again. During the processing of the new configuration, also the appConfig will be picked up and for each application configuration it contains a respective file with the name <appName>-config.json will be created in the shared folder of the Asset Gateway.

To change an existing gateway configuration follow the instruction of update the asset gateway configuration.

For the example above, two files will be created: myAppExample-config.json and anotherApp-config.json.

myAppExample-config.json will contain:

{
  "setting1": "value1",
  "setting2": "value2"
}

anotherApp-config.json will contain:

{
  "settingA": "valueA"
}

HTTP(S) proxy configuration

To enable proxy support, adapt your downloaded or recreated gateway-config file. You can use the httpProxy, httpsProxy and noProxy fields in the gateway configuration file.

These setting have to be set right from the beginning when the Asset Gateway is onboarded, as the proxy settings are required for the onboarding process itself. This is why the example below contains the registrationToken property. In case the proxy settings are adapted later, there is no need for the registrationToken.
To change an existing gateway configuration follow the instruction of update the asset gateway configuration.

Example for HTTPS proxy:

{
    "gatewayId": "<gateway_id>",
    "xfUrl": "https://gateway.<region>.sws.siemens.com/api/<app_name>-<app_tenant_name>/<app_version>",
    "registrationToken": "<jwt_token>",
    "httpsProxy": "https://proxy.example.com:8080"
}

Syntax and restrictions for appConfig

All configurations in the appConfig object must be valid JSON objects
The name of the configuration file created for each app will be derived from the key of the appConfig object. It will be in the format <appName>-config.json
The allowed length for an app name is between 1 and 128 characters
The name must not contain any of the following characters: /\<>:"|?*
